INB Tau

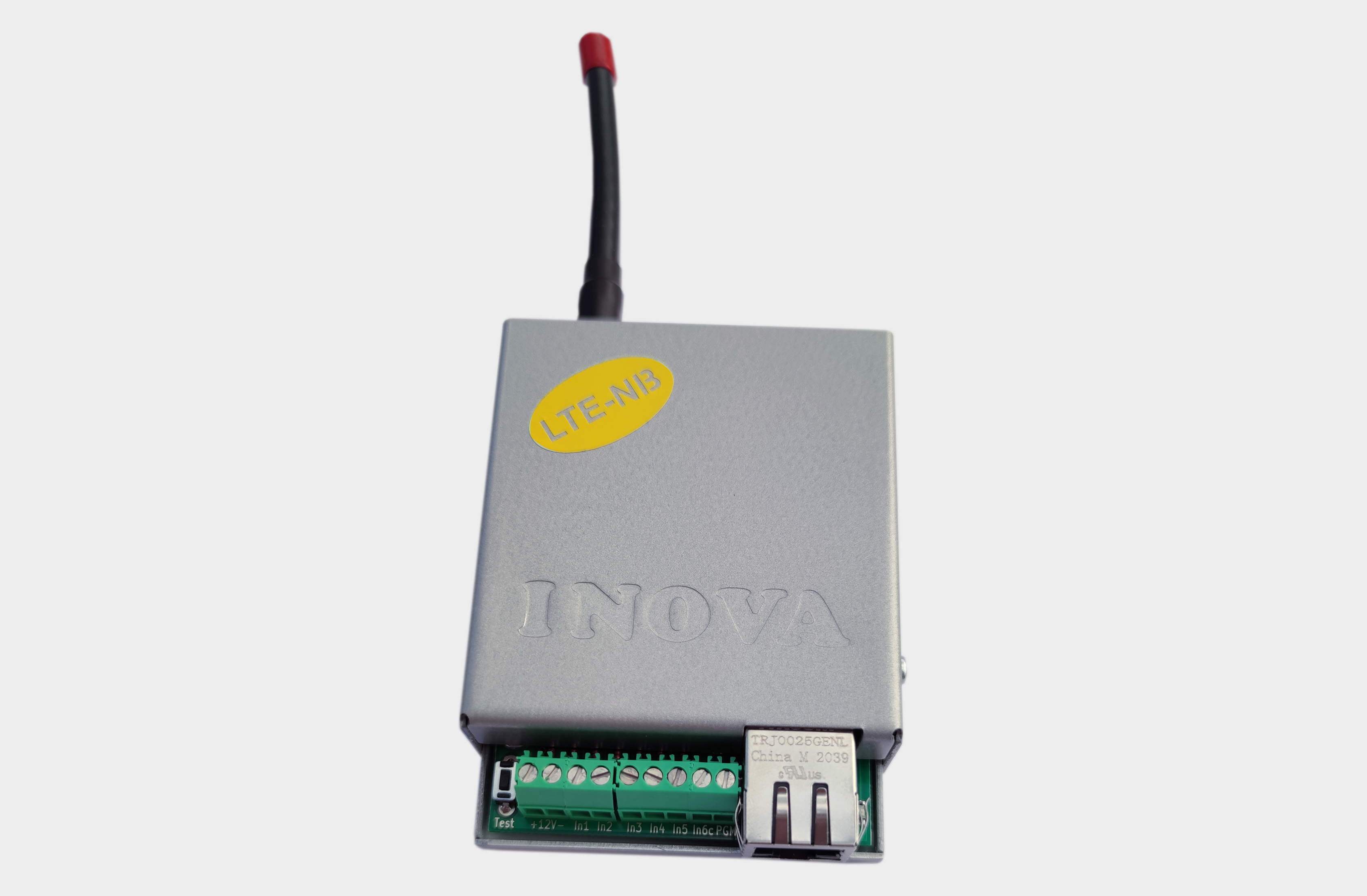

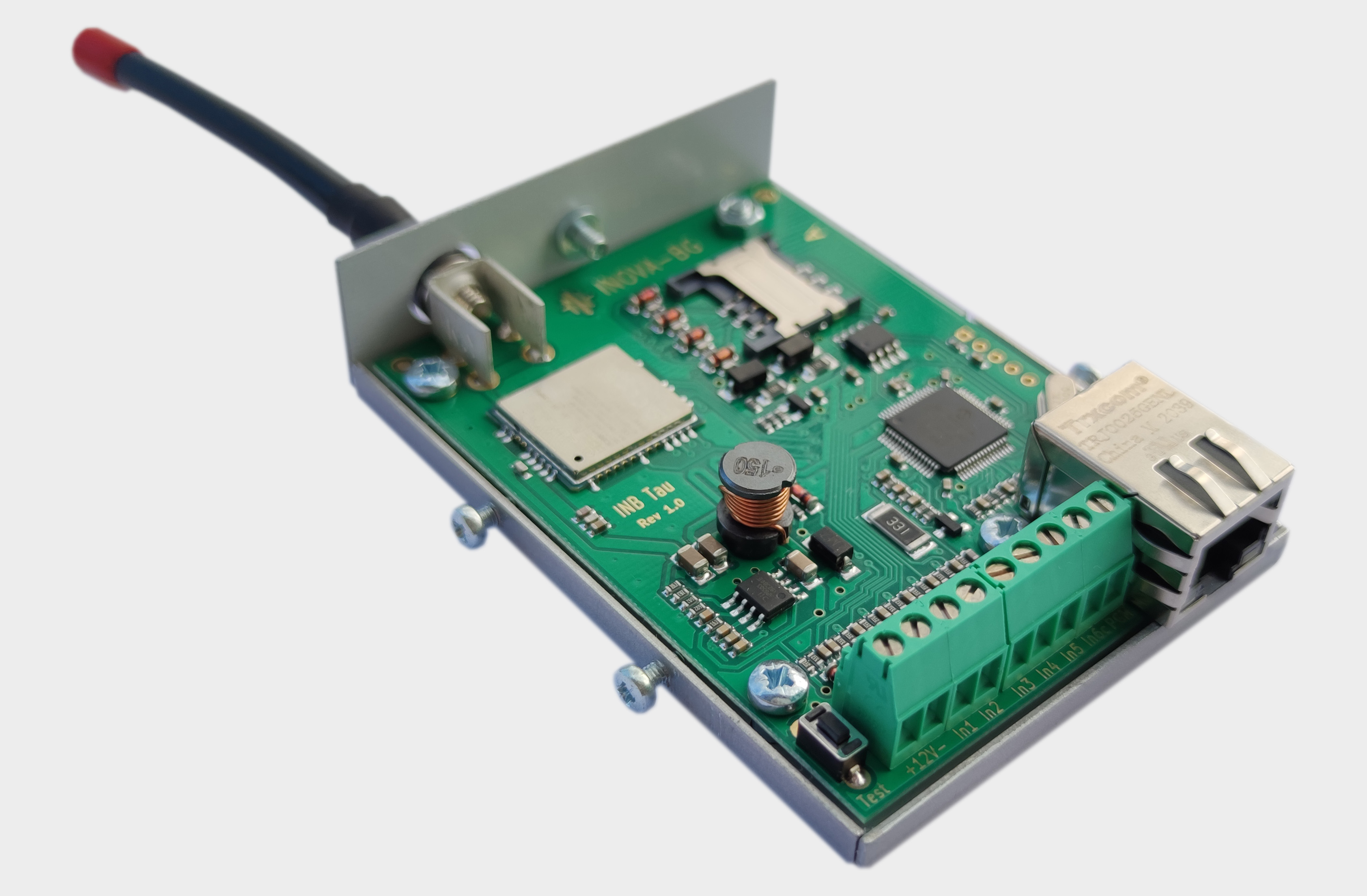

INB Tau - NB-IoT and IP transmitter
INB Tau is a communication device with the main purpose to transmit data from security panels and/or sensors through 4G/5G NB-IoT and/or IP based network. Combining the advantages of those two advanced communication technologies INB Tau provides the most secure connection with monitoring center.
Features
- Power supply 12VDC (8,5V to 16V)
- Low power consumption
- Capability to use communicator as input - using "Ademco Contact ID" protocol
- Six digital inputs working simultaneously with NB-IoT and/or IP transmitters
- Configurable working mode for each digital input: Normal Open, Normal Close, Check for AC voltage from 5V to 20V, Deactivated
- HTML server for easy configuration and status check, protected with an username and a password
- HTML server for easy configuration without the need of specialized software for programming - using only a web browser (Internet Explorer, Google Chrome, Firefox etc.)
- Capability to use one or two fully independent servers. Additional option to use NB-IoT only as a backup in case the IP network fails
- PGM output
- Capability to enter PIN or PUK code for the SIM card
- Graphical display of the status of the NB-IoT network in the web interface
- NB-IoT - +20dB better sensitivity than NB-IoT
- NB-IoT - 50K connections per cell
- IEEE 802.3 Ethernet, Fully Compatible with 10/100/1000Base-T Networks
- Static or dynamic IP address compatible with DHCP server
- Capability to use one or two fully independent IP servers
- Encrypted connection with IP servers
