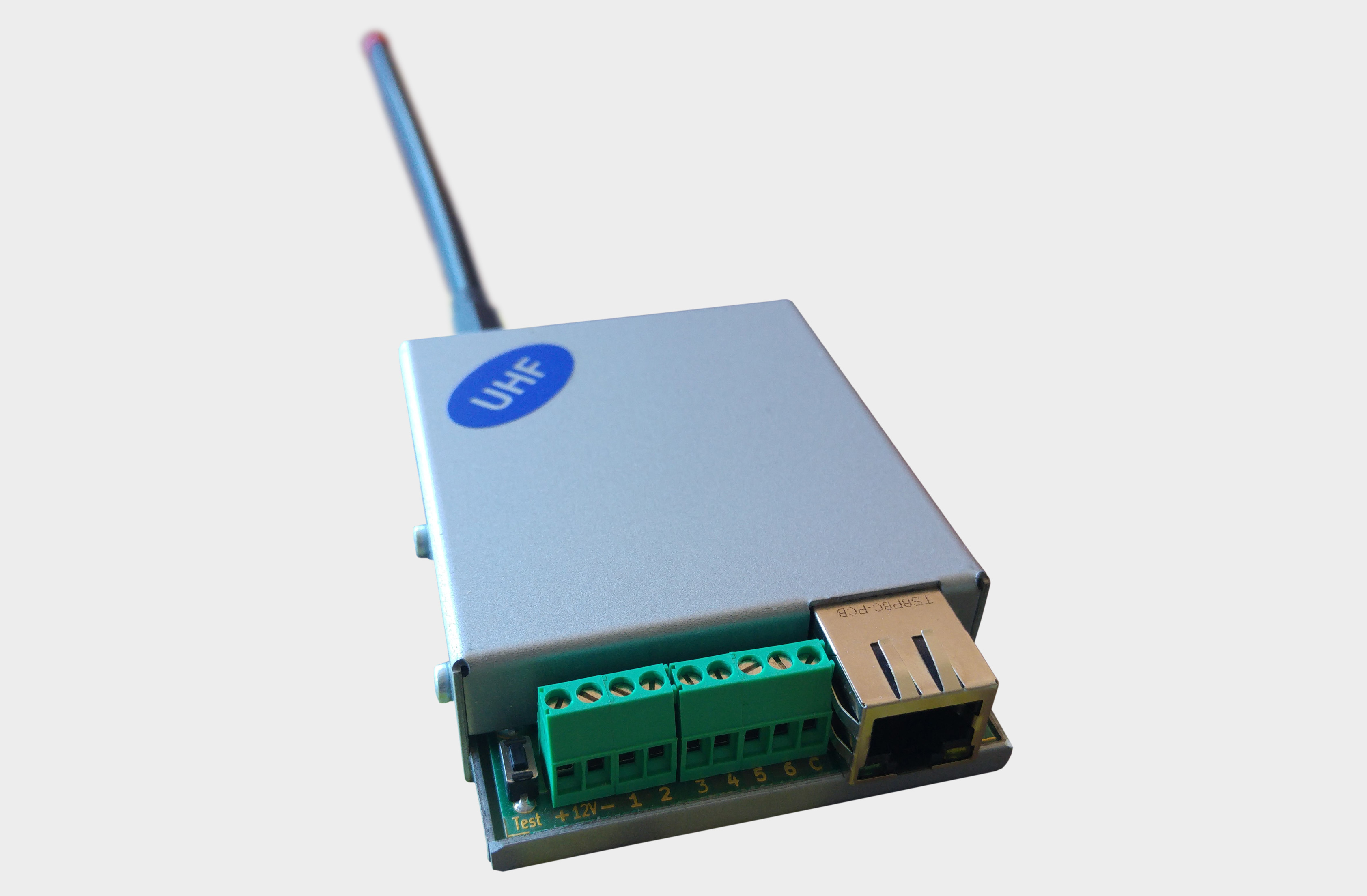

Radina Tau U4

Radina Tau U4 is a communication device with the main purpose to transmit data from security panels and/or sensors through UHF radio channel and/or IP based network. Combining the advantages of those two advanced communication technologies Radina Tau U4 provides the most secure connection with monitoring center using various ways of back-up – 1 main and up to 4 back-up UHF radio frequencies and up to 4 IP servers.

• Power supply 12VDC (8,5V to 16V)
• Low power consumption
• Frequency range – from 400MHz to 468MHz
• RF Output power – 37,5dBm (± 1,5dB) in the whole RF range
• Bandwidth – 12,5KHz
• Constant RF output power regardless of the power supply voltage - from 8,5V to 16V
• Protocols - LARS, LARS II
• One main and up to four back-up frequencies
• Configurable parity check, RF messages repeat count, RF test repeat count, test period and “repeat until restore” period, usage of a Smart Test to reduce radio transmitting
• Capability every digital input separately to be set to transmit on backup RF frequency
• Capability every digital input separately to be set to re-transmit RF message over a period of time until it is in alarm state
• Network interface - IEEE 802.3 Ethernet, Fully Compatible with 10/100/1000BaseT Networks
• Static or dynamic IP address compatible with DHCP server
• Capability to use one or two fully independent IP servers
• Encrypted connection with IP servers
• Verification with an unique ID code
• HTML server for easy configuration and status check, protected with an username and a password
• Capability to change the username and password of the html server
• Indication (4 LEDs) for:
• Radio LED – blinks under normal operation, ‘ON’ when transmitting radio message, ‘OFF’ while waiting after transmission
• LAN Status - Ethernet available
• LAN Activity – Network packets service
• Server LED – Established connection with IP server/s – when using 1 server - ‘ON’ when connection is established. When using 2 servers - ‘ON’ when connection is established with both servers, blinks if connection is established with only one server , ‘OFF’ when connection isn’t established with both servers
• Six digital inputs working simultaneously with RF and IP transmitters
• Capability to use communicator as input - using “Ademco Contact ID” protocol
• Configurable working mode for every digital input:
• Normal Open
• Normal Close
• Check for AC voltage from 5V to 20V
• Deactivated
• Configurable parameters sent for events on each digital input to IP servers
